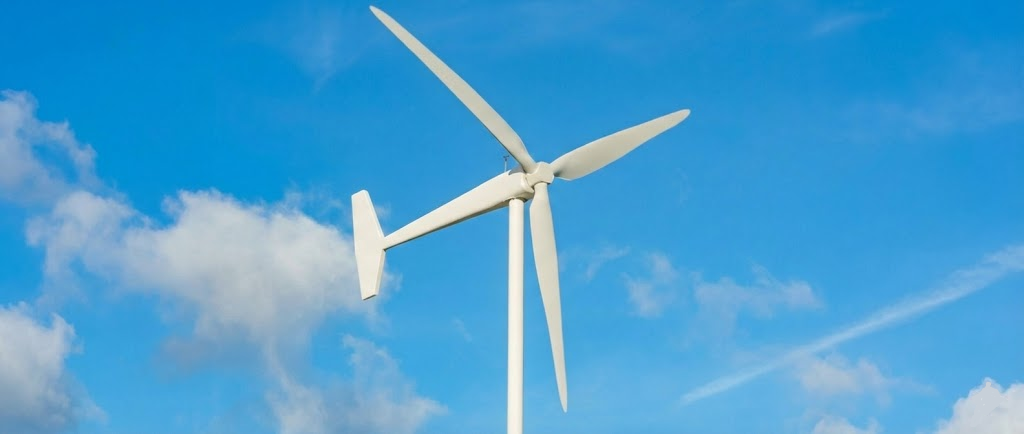

The Petrel 30-15. A no nonsense perfomer.

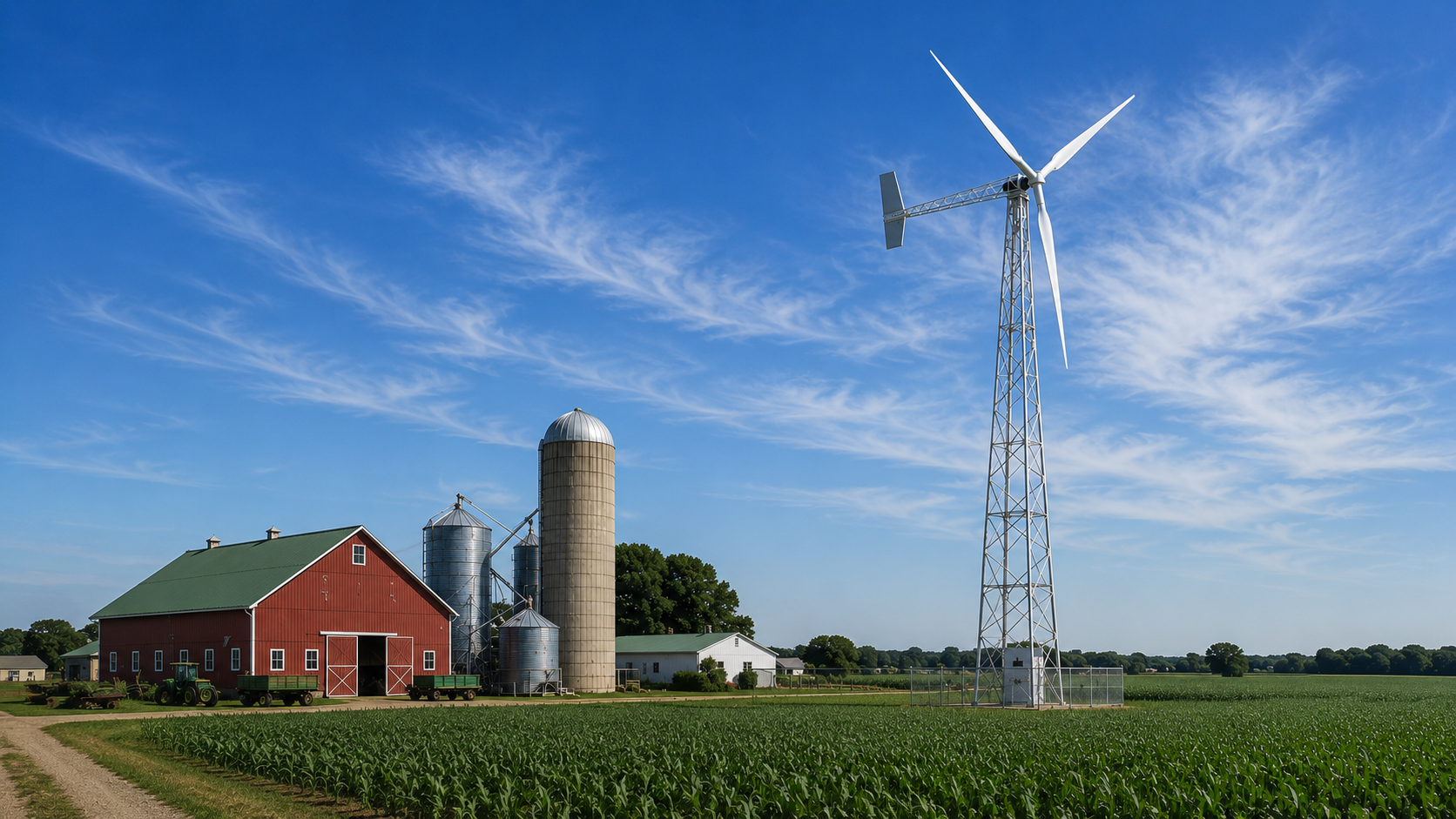

The Petrel 30-15 is a robust, high-output farm-scale wind turbine. It combines an innovative permanent magnet generator with industrial grade off-the-shelf components for optimal performance, economics and reliability. The low rotor speed and direct-drive permanent magnet generator ensure quiet, efficient operation. Passive power and yaw control eliminate typical points of failure resulting in robust, reliable operation over the design lifetime of 25 years.

Key measures

Rated power

30 kW

Cut-in wind speed

3 m/s

Rated wind speed

10.5 m/s

Cut-out wind speed

25 m/s

Max power

30.6 kW

Tower options

Monopole / Lattice /

15 m to 36 m

Tail length

5.8 m

Tower top mass

2200 kg

Rotor

Rotor diameter

15.5 m

Rotor area

189 m2

Rotor speed

25-48 rpm

Tip speed

39 m/s (slow, quiet)

Blade length

7.5 m

Blade manufacturer

Olsen Wings (Denmark)

Blade material

Fibreglass

Pitch angle

fixed

Drivetrain, Control & Safety

Control & SCADA

Elpower 30kW inverter (Italy)

Generator

Permanent Magnet Synchronous / 48 rpm / 30kW (custom)

Gearbox

None

Brakes

generator braking / fail safe generator shaft brake / passive aerodynamic blade tip-brakes

Power control

Passive aerodynamic blade stall

Yaw control

Passive (tail)

Yaw bearing

Rollix slewing bearing (France)

Low maintenance

  • Visual inspection once a year

Designed to last

  • All components verified according to IEC 61400-2

  • Operation from -25 C to 40 C

  • Design lifetime 25 years

Produces in low wind

Hub height wind speed (m/s)

Annual Energy Production  (kWh)

3.5

28600

4.0

40700

4.5

53700

5.0

67000

5.5

80200
